IMPLANT RESTORATIONS

Cast Custom Abutments

Custom cast abutment services and clinical references

Learn about Mabel’s custom cast implant abutment fabrication process and available reference materials. Also explore our CAD/CAM custom abutments and implant restoration overview.

Cast custom abutments are fabricated using a UCLA abutment (plastic sheath with a cast to machined platform interface) by the technician. Mabel Dental Lab works with UCLA abutments to make cast custom abutments from numerous implant companies.

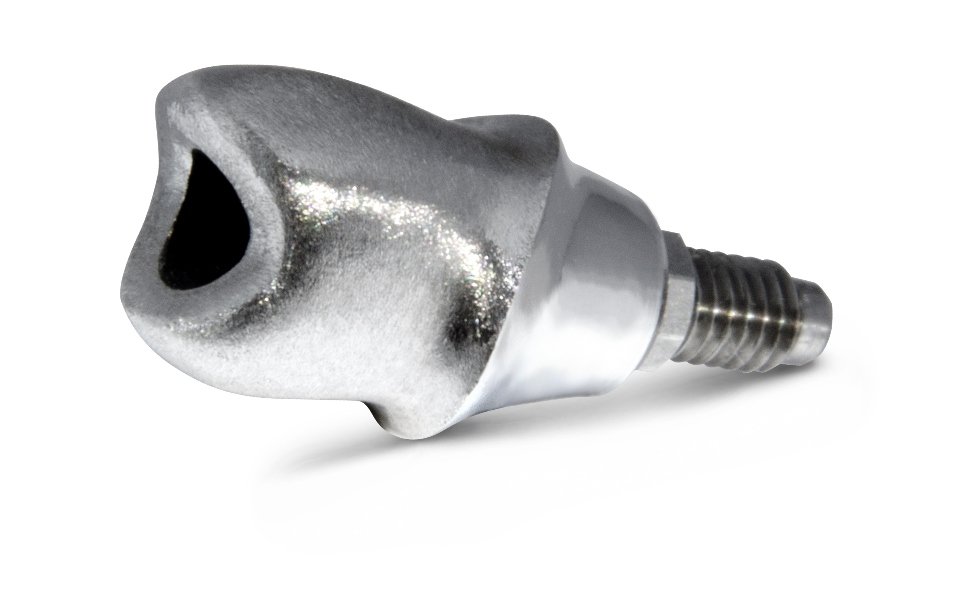

Cast custom dental implant abutment

Fabricating a Cast Custom Abutment

We start by waxing over the UCLA abutment to achieve the ideal shape, contour, and emergence profile needed for the individual restoration.

The technician then sprues and invests the pattern and places it in a burnout furnace. Once the ring is at the correct temperature the technician casts the abutment out of a prescribed alloy. We use yellow gold alloy for anterior and high palladium alloy for posterior abutments. After devesting the custom cast abutment it is finished and polished.

body.page-id-535 .et_pb_text_inner h2{color:#321a58!important;font-size:clamp(24px,2.6vw,30px)!important;line-height:1.3!important;margin:30px 0 15px!important;border-bottom:3px solid #f47e3c;padding-bottom:10px}body.page-id-535 .et_pb_text_inner p{line-height:1.75;margin-bottom:17px}body.page-id-535 .et_pb_text_inner img{max-width:100%;height:auto;border-radius:12px}body.page-id-535 .et_pb_text_inner table{max-width:100%;width:100%!important;height:auto;overflow-x:auto;display:block}body.page-id-535 .mabel-implant-cta{background:linear-gradient(110deg,#f7f2fb,#fff);border-left:5px solid #f47e3c;border-radius:16px;padding:25px;margin:30px 0}body.page-id-535 .mabel-implant-cta h2{border:0;margin:0 0 10px!important;padding:0}body.page-id-535 .mabel-implant-cta .btn{display:inline-block;padding:12px 18px;background:#563185;color:#fff!important;text-decoration:none;border-radius:8px;font-weight:700}@media(max-width:700px){body.page-id-535 .et_pb_text_inner table td{display:block;width:100%!important}body.page-id-535 .mabel-implant-cta{padding:20px}}>



Learning Resources



Turnaround Time
Please allow 8-10 business days for custom cast abutments and the finished crown. 8 Business days for digital cases.

Have an Implant Abutment Case?

Contact our team to review compatible components, prescribed restoration options, and case requirements.
