Night Guards / Bite Splints
Explore hard, soft, combination, and digital nightguard options
Mabel Dental Lab offers multiple night guard and bite splint options to suit different prescriptions and restorative requirements. Explore the appliance types below, then contact our team to discuss design, material selection, and case records.

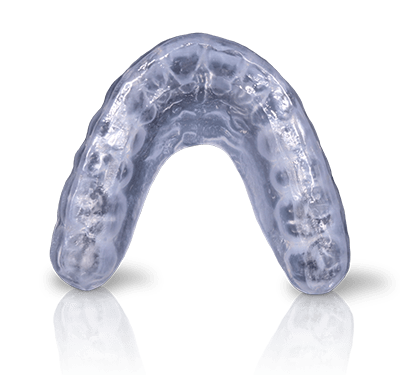

Hard Processed Acrylic

Our Hard Acrylic Night Guards are waxed and hand processed just like our Dentures. They are fabricated with Lucitone® Clear acrylic and heat cured for maximum strength. Prescribe the hard acrylic night guard for your patients that require a rigid night guard with absolutely no flexibility. However, we can add a soft liner for added patient comfort. It can easily be repaired and is also easy to add to should you need to adjust the vertical.

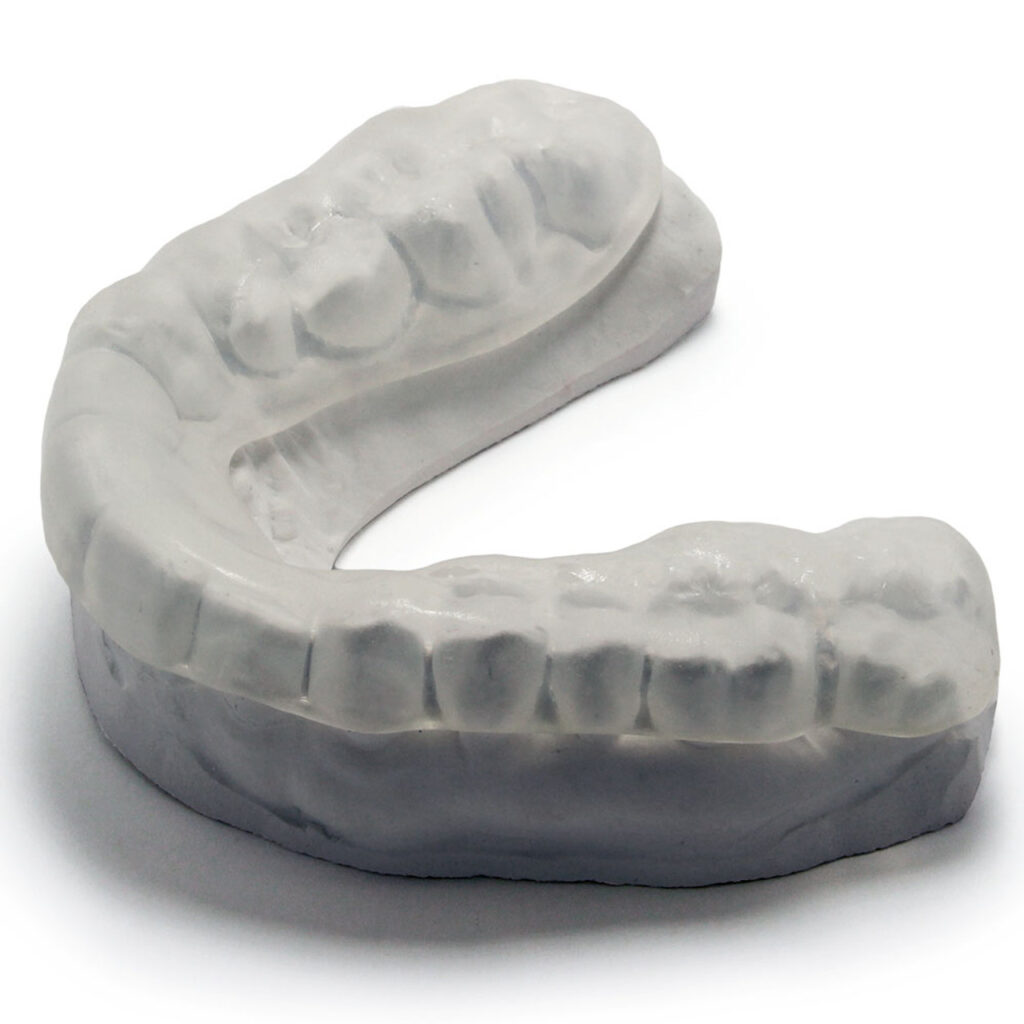

Soft Nightguard
A simple vacuum formed nightguard recommended for younger patients or those with mild to moderate bruxism.

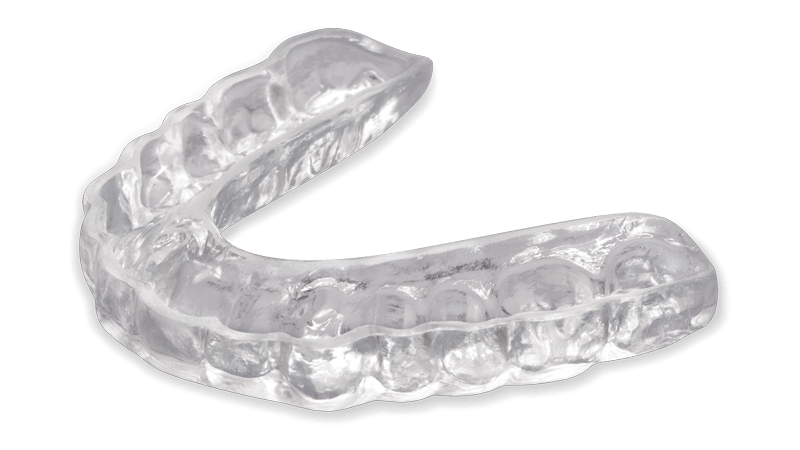

Hard / Soft Combination

A clear splint designed to alleviate the pain and damage caused by bruxing or clenching of the teeth. It is the most widely prescribed bite splint available due to its comfort and fit. Two layers make up the Splint: a 1 mm soft polyurethane inner layer that rests comfortably against the teeth and gums; and a 3 mm hard, clear co-polyester outer layer that provides durability and bonds with acrylic for easy modification. Each splint is made with a standard flat occlusal plane and slight opposing cusp indentation or to your specific bite plane needs. The soft liner assures patient comfort and the hard surface assures long-lasting wear.
Impak™ Milled

Our Impak™ night guard is milled using CAD/CAM technology. It has optimally balanced chewing surfaces, option front guide planes. CAD/CAM technology offers a customized fit to the patient’s unique dental anatomy, ensuring optimal comfort and effectiveness while minimizing irritation or discomfort. Patients report quick adaption and ease of use.
You can view a video of the manufacturing of this night guard below:

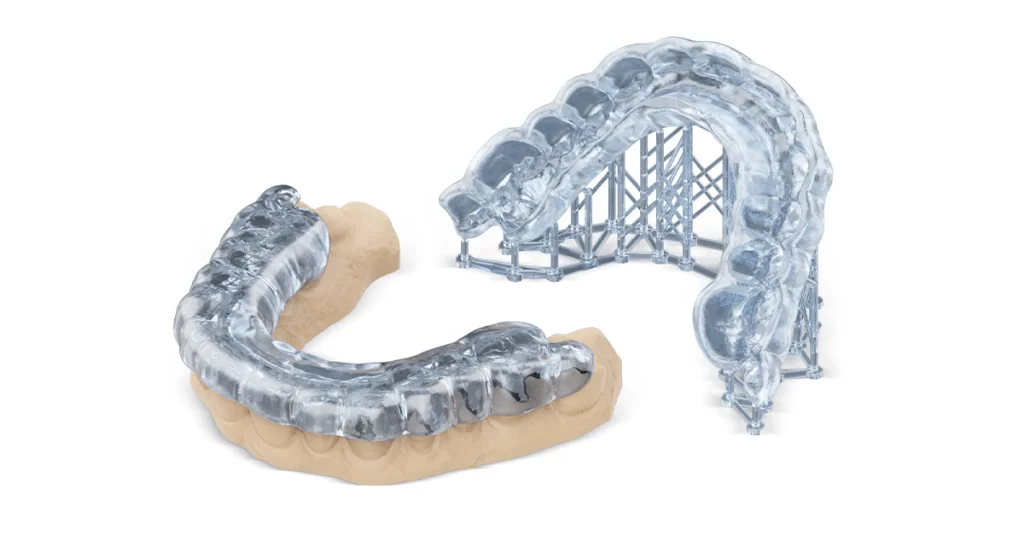

3D-Printed Night Guards

We also offer 3D-printed night guards made from digital scans. These appliances provide an additional digital workflow option when suitable for the prescribed case.
Learning Resources
- Nightguard/Splint Bite Technique (preferred technique except for soft nightguards)

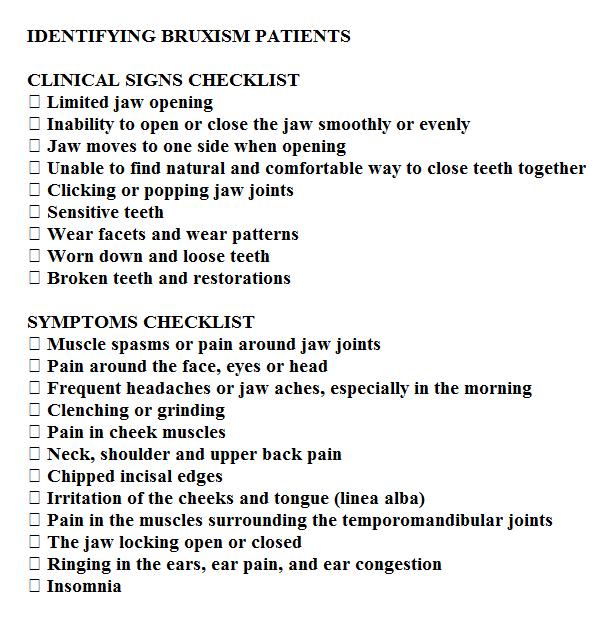

- How to Identify Bruxism
Ready to Send a Night Guard Case?
Contact us about material options, bite records, and case requirements.
Send a Case → Contact Our Team
